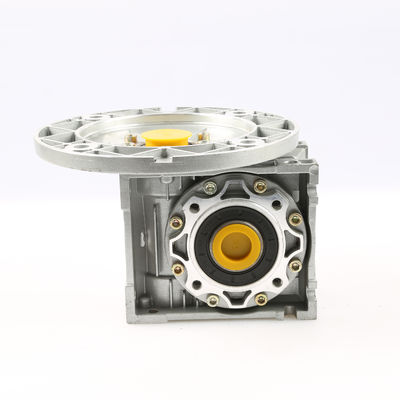

Motor del engranaje de gusano del 1:60 del ratio de reducción
Datos del producto:
| Lugar de origen: | China |
| Nombre de la marca: | Wanshsin |
| Certificación: | ISO9001, CCC, CE |
| Número de modelo: | NMRV90 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 pedazo |
|---|---|
| Precio: | Negotiable |
| Detalles de empaquetado: | Paquete del cartón |
| Tiempo de entrega: | 3-7 días laborables |
| Condiciones de pago: | L / C, T / T, Western Union |
| Capacidad de la fuente: | 10.000 pedazos por mes |
|
Información detallada |
|||
| Velocidad de la salida: | 14-280rpm | Arreglo del engranaje: | Gusano |
|---|---|---|---|
| Ratio: | 7,5, 10,15,20,25,30,40,50,60,80,100 | Material: | Aleación de aluminio/arrabio |
| Frecuencia: | 50Hz, 60Hz | Fase: | Monofásico/trifásico |
| Color: | Gris de la plata/de acero/azul | Dureza superficial del diente: | HRC58-62 |
| Alta luz: | Motor del engranaje de gusano del 1:60 del ratio,motor del engranaje de gusano HRC58,1:60 del ratio motor del engranaje de 3 fases |
||
Descripción de producto
Worm Gear Motor Reduction Ratio 1:50 1:60 Single Phase Three Phase for Beverage Line
The worm gear reducer is a right-angle worm gearbox engineered by Wanshsin. It is suitable for use in applications within custom assembly and test systems, packaging equipment, metal cutting and metal forming machinery, general purpose automotive, etc.
The unit is constructed in a compact design with exact reduction ratios. It ensures high torsional rigidity and torque carrying capacity. The device has a silent operation, with low backlash. It is maintenance-free, and lubricated for lifetime use.
The gearbox is enclosed in a robust cast iron housing, with a sturdy internal structure. It features various reduction ratios from 7.5 to 100. It has a rating torque of 2.6 Nm to 1596 Nm.
1. The body has excellent thermal conductivity.
2. Hardened worm with fine grinding has the features of higher efficiency and big output torque.
3. Stably operation with low noise, suitable for long - term continuous work in harsh environment.
4. Light weight high mechanical strength.
5. 9 kinds of frame specifications from 025-130; Transfer power range from 0.06kw to 7.5kW.
6. The speed ratio ranges from 7.5:1 to 100:1 with 11 kinds of speed ratio.
7. High quality aluminum alloy casting box, suitable for universal mounting.
8. Adjustable speed span can be accurate to 0.5~1 r/min 9. Can be combined with other types of gearboxes (Such as R Series, K Series, F Series, S Series, RV Series, WB Series cycloid reducers)
