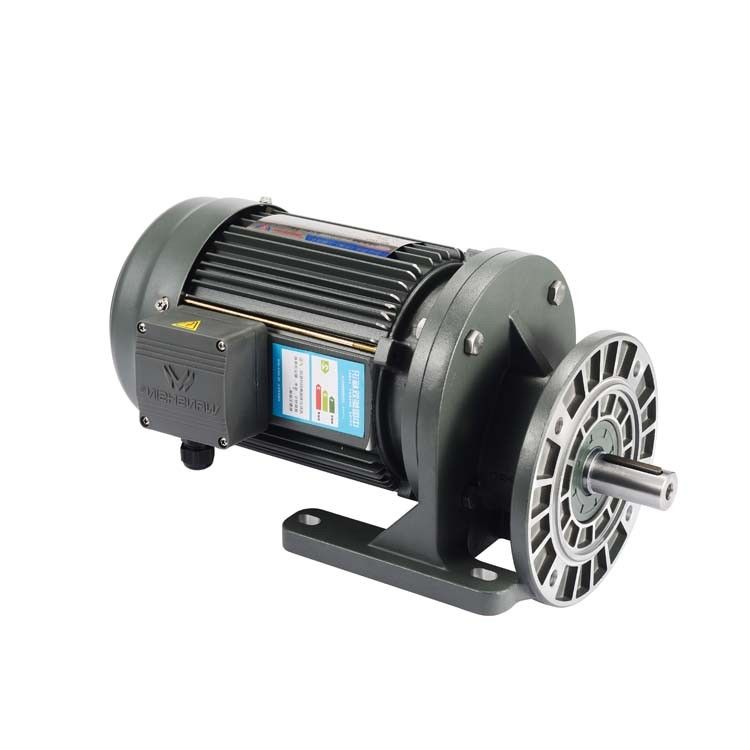

Motor trifásico del reductor de velocidad IP54 para la granja de ganado
Datos del producto:
| Lugar de origen: | China |
| Nombre de la marca: | Wanshsin |
| Certificación: | ISO9001, CCC, CE |
| Número de modelo: | GH32750W10SBG1LDH0 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 pedazo |
|---|---|
| Precio: | Negotiable |
| Detalles de empaquetado: | Paquete del cartón |
| Tiempo de entrega: | 3-7 días laborables |
| Condiciones de pago: | L / C, T / T, Western Union |
| Capacidad de la fuente: | 10.000 pedazos por mes |
|
Información detallada |
|||
| Eje de salida: | Eje diseñado especial para el uso de las aves de corral | Esfuerzo de torsión de la salida: | 6-3226Nm |
|---|---|---|---|
| Arreglo del engranaje: | helicoidal | Poder: | 0.1kW-7.5kW |
| Ratio de reducción: | 1:3-1800 | Velocidad de la salida: | 7-570rpm |
| Gama de la protección: | IP44 IP54 IP55 | Frecuencia: | 50Hz, 60Hz |
| Motor: | Fase de la chamusquina/trifásico | Material: | Aleación de aluminio/arrabio |
| Alta luz: | Motor del reductor de velocidad del CCC,Motor del reductor de velocidad IP54,Reductor del engranaje del motor IP54 |
||
Descripción de producto
Cattle Farm Customized Shaft Speed Reducer Motor Big Output Torque
Product Description
PRODUCT FEATURESS
1 High torque deceleration ratio, secondary energy saving, Environmental protection, energy saving.
2 Low noise, low temperature rise.
3 Wide versatility, impact resistance, high durability.
4 Exquisite and compact, and easy to be installed.
5 Special designed output shaft for livestock feeding farms.
| Output Shaft | 18 | 22 | 28 | 32 | 40 | 50 | 60 |
| RATIO | 3~50 | 3~90 | 3~200 | 3~200 | 3~200 | 3~200 | 3~100 |
| Power | 100W/200W | 100w.200w.400w | 1/4HP.1/2HP,1HP | 1/2HP,1HP,2HP | 1HP,2HP,3HP | 2.3.5.7.5.10(HP) | 7.5HP.10HP |
| Output torque | 0.19~19.3kg-m | 0.19~36kg-m | 0.37~69kg-m | 1.3~123kg-m | 1.3~145kg-m | 2.6~267kg-m | 9.8~267kg-m |
| Output speed (RPM) | 0.1~1800RPM | 0.1~1800RPM | 0.1~1800RPM | 0.1~1800RPM | 0.1~1800RPM | 0.1~1800RPM | 0.1~1800RPM |
FAQ
Q: What should I provide when I choose gearbox/speed reducer?
A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Q: Are you a motor manufacturer?
A: Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.
Q: How long does it take to finish my order?
A: Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. It depends on the quantity.
Q: Can I get a sample first?
A: Sure, we are honored to offer you sample for test before placing a formal order.
