Variation Rate 5% Digital Speed Controller AC Motor Controller Locked Rotor Protection
Datos del producto:
| Lugar de origen: | China |
| Nombre de la marca: | Wanshsin |
| Certificación: | ISO9001 |
| Número de modelo: | WS-L |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 pedazo |
|---|---|
| Precio: | Negotiable |
| Detalles de empaquetado: | Paquete del cartón |
| Tiempo de entrega: | 3-5 días laborables |
| Condiciones de pago: | L / C, T / T, Western Union |
| Capacidad de la fuente: | 20.000 pedazos por mes |
|
Información detallada |
|||
| Poder aplicable del motor: | 6W-200W | Frecuencia: | 50Hz/60Hz |
|---|---|---|---|
| Tipo: | Regulador de la velocidad del panel de Digitaces | Regulación de la velocidad: | Llave del panel/potenciómetro del panel |
| Tiempo de frenado: | 0,4 sec | Gama de velocidad: | 50Hz: 90-1300rpm, 60Hz: 90-1600rpm |
| Voltaje: | CA la monofásico 220V | Velocidad el cambio: | el 5% |
| Alta luz: | Regulador del motor de CA de la tarifa el 5% de la variación,regulador del motor de CA ISO9001,regulador de la velocidad de la tarifa el 5% Digitaces de la variación |
||
Descripción de producto

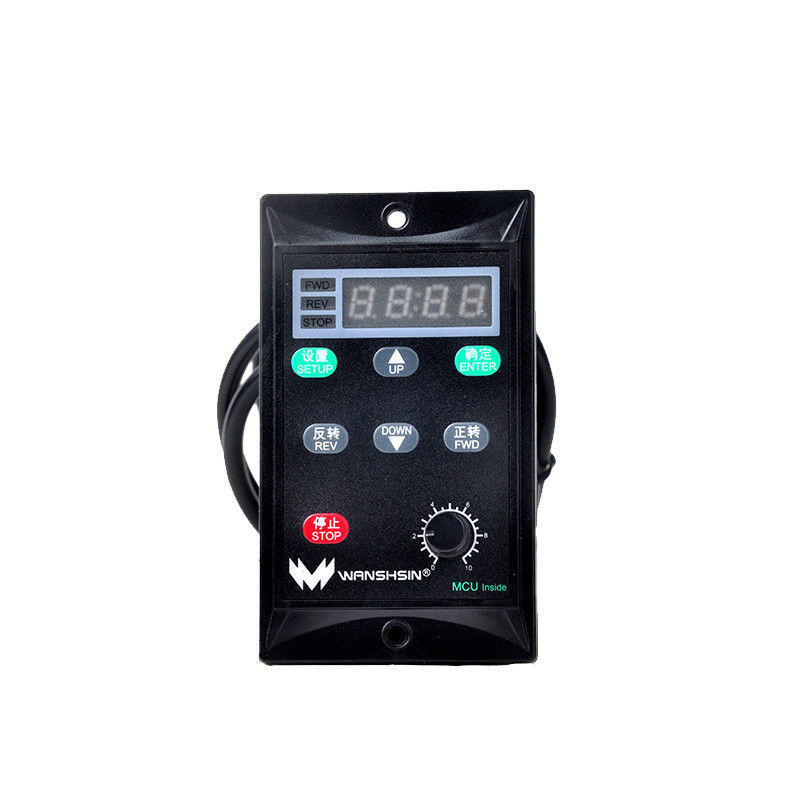

Digital Panel AC Motor Speed Controller CW and CCW Rotation Locked Rotor Protection
Product Features
1 Combined with a speed-regulating motor to realize a wide range of continuously variable speed.
2 Rich functions can realize slow acceleration, slow deceleration and motor stall protection.
3 The governor running capacitor is directly installed inside the governor, and the wiring is neat and convenient.
Type parameter table
| Type | WS-P | WS-L | WX-K |
| Installation method | Panel type | Digital display panel type | Multi-Function digital panel type |
| Speed control method | Panel Potentiometer | Panel Key/Panel Potentiometer | Panel Key/Panel Potentiometer |
| Power voltage | Single-phase 220V AC | Single-phase 220V AC | Single-phase 220V AC |
| Functions |
Speed control, slow deceleration, slow acceleration, locked rotor protection |
Speed control, slow deceleration, slow acceleration, electromagnetic brake, locked rotor protection, panel control forward and reverse, speed display, panel buttons, control with memory, magnification setting and external switches K1 and K2 can be directly connected to PLC control. | Speed control, slow acceleration, slow deceleration, locked-rotor protection, control forward and reverse rotation, speed display, panel button control with memory, magnification setting, 4 speeds, power failure electromagnetic brake stop, RST reset function, 0~10V simulation quantity control and external switches K1 and K2 can be directly connected to PLC control. |
|
Applicable motor power range |
6W~200W | ||
| Running capacitor | Built-in | ||
| Power frequency | 50/60Hz | ||
| Speed range | 50Hz:90~1300r/min 60Hz:90~1600r/min | ||
| Speed variation rate | 5% | ||
| Electromagnetic brake time | 0.4 seconds | ||
| Applicableenvironment | -10℃~+40℃ non-freeze;<85% non-condensation | ||
FAQ
Q: What should I provide when I choose gearbox/speed reducer?
A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Q: Are you a motor manufacturer?
A: Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.
Q: How long does it take to finish my order?
A: Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. It depends on the quantity.
Q: Can I get a sample first?
A: Sure, we are honored to offer you sample for test before placing a formal order.
