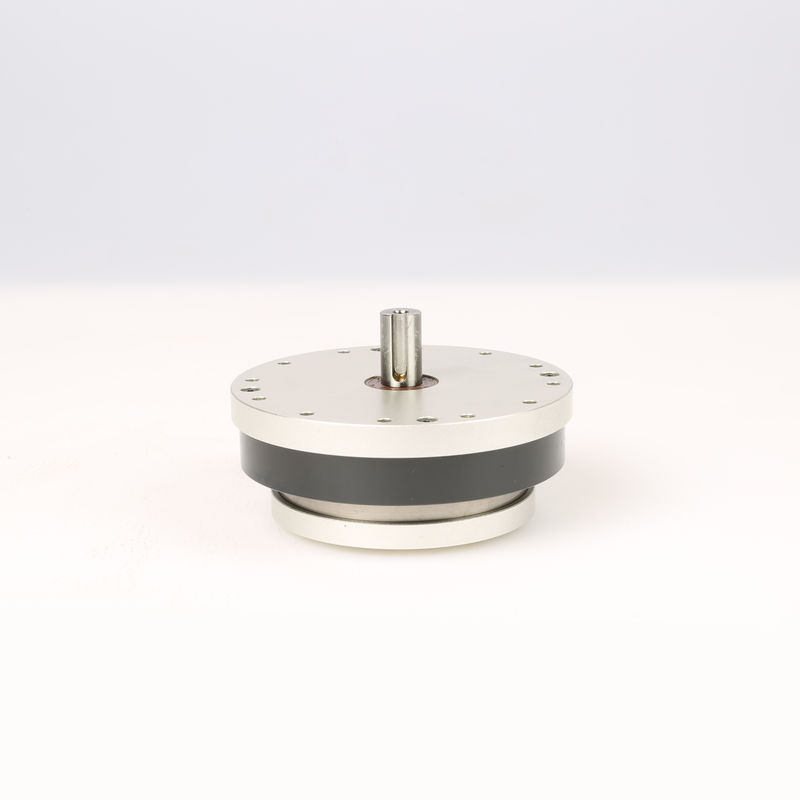

Light Weight Reduction Ratio 1:80 Harmonic Drive Reducer Strain Wave Gearbox
Datos del producto:
| Lugar de origen: | China |
| Nombre de la marca: | Wanshsin |
| Certificación: | ISO9001, CE, CCC |
| Número de modelo: | WSHG-25-100 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 pedazo |
|---|---|
| Precio: | Negotiable |
| Detalles de empaquetado: | Paquete del cartón |
| Tiempo de entrega: | 3-7 días laborables |
| Condiciones de pago: | L / C, T / T, Western Union |
| Capacidad de la fuente: | 10.000 pedazos por mes |
|
Información detallada |
|||
| Serie del tamaño: | 14,17,20,25,32 | Ratio de reducción: | 50,80,100,120 |
|---|---|---|---|
| Esfuerzo de torsión de la salida: | 3.5Nm-160Nm | Velocidad de la salida: | 30-200rpm |
| Velocidad entrada clasificada: | 3000-3500rpm | Velocidad máxima de la entrada: | 8000rpm |
| Arreglo del engranaje: | Armónico | Material: | Acero inoxidable |
| Alta luz: | Light Weight Harmonic Drive Reducer,Ratio 1:80 Harmonic Drive Reducer,Ratio 1:80 Strain Wave Gearbox |
||
Descripción de producto
Harmonic Driver Reduction Ratio 1:50, 1:80, 1:100, 1:120 Backlash ≤ 20 arc/sec for Printing Machine
PRODUCT FEATURESS
1. Tooth side clearance can be adjusted
2. High transmission efficiency
3. Good coaxiality
4. Conveniently realize differential transmission
5. Simple structure, small size and light weight
6. Large transmission ratio range
Mainly used in all kinds of light industrial robots, robotic arms, printing, papermaking machinery, medical machinery, measurement, analysis, testing machines, large telescopes, precision packaging machinery, semiconductor manufacturing equipment, FPD manufacturing equipment, communication devices, aerospace machinery, CNC Precision transmission systems that require volume, such as machine tools, radars, and various satellite ground stations, etc.
| Model | Ratio | Rated Torque When Input 2000r/min | Maximum Allowed Torque for Starting and Stopping |
Maximum Allowed Average Load Torque |
Maximum Allowed Instantaneous Torque | Maximum Allowed Input Speed | Arcsec |
Lifespan (hours) |
| WCSF | 50-120 | 5.4-137 | 18-353 | 6.9-216 | 35-686 | 4500-8000 | 10-20 | 10000-15000 |
| WCSG | 50-120 | 6.3-160 | 21-413 | 8-253 | 42-803 | 4500-8000 | 15-20 | 10000-15000 |
| WSHG | 50-120 | 6.3-160 | 21-413 | 8-253 | 42-803 | 4500-8000 | 15-20 | 10000-15000 |
| WSHD | 50-100 | 3.5-91 | 11.4-221 | 4.6-143 | 23-397 | 4500-8000 | 10-20 | 10000-15000 |
| WCSD | 50-100 | 3.5-91 | 11.4-221 | 4.6-143 | 23-397 | 4500-8000 | 10-20 | 10000-15000 |
FAQ
Q: What should I provide when I choose gearbox/speed reducer?
A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Q: Are you a motor manufacturer?
A: Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.
Q: How long does it take to finish my order?
A: Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. It depends on the quantity.
Q: Can I get a sample first?
A: Sure, we are honored to offer you sample for test before placing a formal order.
